Tower Melting-Cum-Holding Furnaces

Integrated Melting & Holding for Optimized Die-Casting

  • Efficient Metal Preheating & Low Fuel Consumption
  • Precise Temperature Control for Superior Casting
  • Compact Design for Direct Coupling with Die-Casting Machines
Download PDF
Get a Quote

OVERVIEW

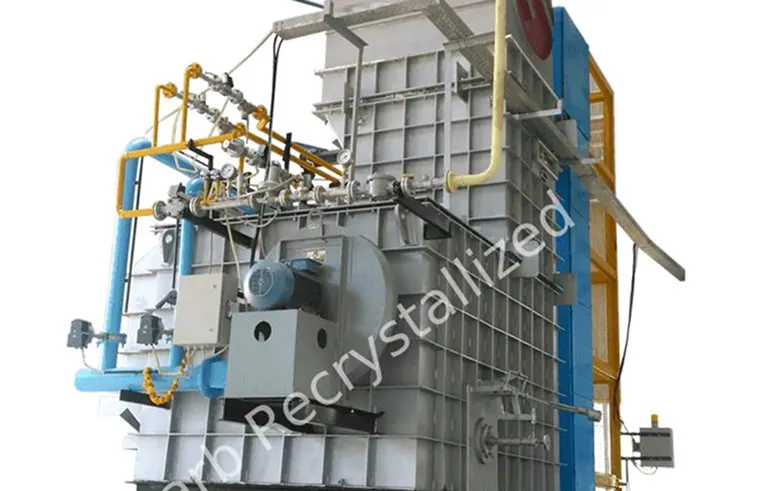

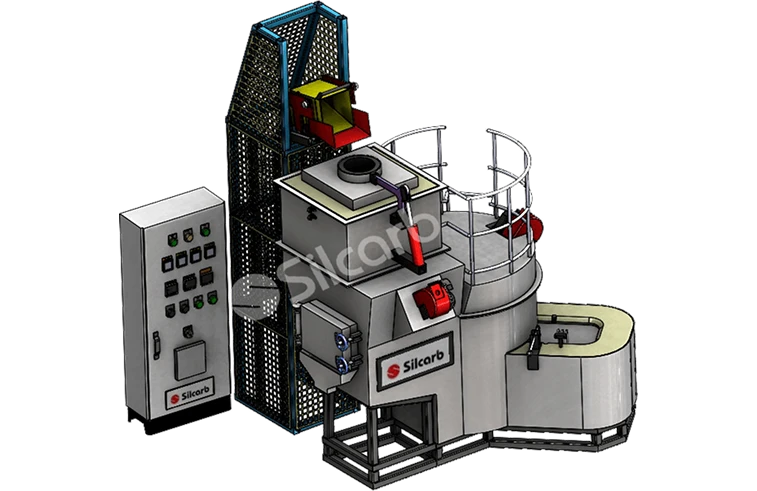

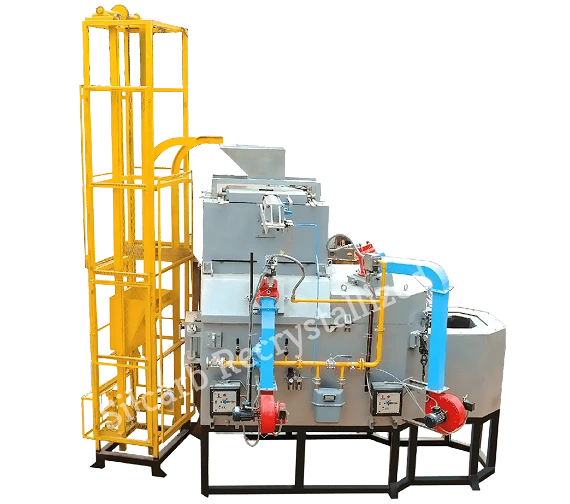

Tower Melting-Cum-Holding Furnaces

Silcarb manufactures Tower Melting-Cum-Holding Furnaces designed for die-casting applications where centralized bulk melting is not ideal. These compact furnaces integrate seamlessly with pressure die-casting and gravity die-casting cells, ensuring continuous metal supply with minimal heat loss.

The furnace is divided into three key zones:

  • Melt Shaft: Uses waste gases to preheat the cold charge, enhancing thermal efficiency.
  • Holding Bay: Maintains accurate metal temperature with burner or electric heating (top-heated or immersion system).
  • Tap-Out Well: Equipped with a filter and degassing system for high-quality molten metal output.
    • The system features automated controls, including metal level detectors, synchronized doors, and energy-efficient burners, ensuring precision and efficiency.

    SPECIFICATIONS

    Tower Melting-Cum-Holding Furnaces Specifications

    • Output Capacity: 150 kg – 1,500 kg/hour
    • Heating System: Burner or electric (top/immersion)
    • Charging System: Skip charger for fresh ingots & shop returns
    • Temperature Control: Independent for melting & holding chambers
    • Tap-Out System: Bottom tapping with automated door synchronization
    • Fuel Efficiency: Optimized with heat recuperation options

    FAQs

    Silcarb manufactures a Rugged Crucible Type Aluminium Melting Furnace ?

    Silcarb manufactures a Rugged Crucible Type Aluminium Melting Furnace (Silicon Carbide Crucible). These are mainly used in melting and holding high magnesium alloys of Aluminum and Copper. Silicon Carbide Heaters are used as the main heat source. Crucible furnaces are small capacity furnaces used for small melting applications or exclusively as holding furnaces. The metal is placed or poured into a ceramic crucible which is contained in a circular furnace that is fired by a gas burner or heated by electric elements/
    Silcarb manufactures a Rugged Crucible Type Aluminium Melting Furnace (Silicon Carbide Crucible). These are mainly used in melting and holding high magnesium alloys of Aluminum and Copper. Silicon Carbide Heaters are used as the main heat source. Crucible furnaces are small capacity furnaces used for small melting applications or exclusively as holding furnaces. The metal is placed or poured into a ceramic crucible which is contained in a circular furnace that is fired by a gas burner or heated by electric elements/
    Silcarb manufactures a Rugged Crucible Type Aluminium Melting Furnace (Silicon Carbide Crucible). These are mainly used in melting and holding high magnesium alloys of Aluminum and Copper. Silicon Carbide Heaters are used as the main heat source. Crucible furnaces are small capacity furnaces used for small melting applications or exclusively as holding furnaces. The metal is placed or poured into a ceramic crucible which is contained in a circular furnace that is fired by a gas burner or heated by electric elements/
    Silcarb manufactures a Rugged Crucible Type Aluminium Melting Furnace (Silicon Carbide Crucible). These are mainly used in melting and holding high magnesium alloys of Aluminum and Copper. Silicon Carbide Heaters are used as the main heat source. Crucible furnaces are small capacity furnaces used for small melting applications or exclusively as holding furnaces. The metal is placed or poured into a ceramic crucible which is contained in a circular furnace that is fired by a gas burner or heated by electric elements/
